KBMKINGDOM BUILT MOTORSENGINE REGISTRY
Registry onlineBuilder dashboard
Permanent digital build record · Issued July 18, 2026
Kingdom Built Motors
ENGINE
PASSPORT
KBM-K24-0001
EngineK24
Displacement2.4L
Build typeStreet Performance Long Block
StatusVerified Build
01 / Identity
Build overview
The permanent identity and intended configuration of this engine.
- Engine family
- K24
- Displacement
- 2.4L
- Configuration
- DOHC 16-valve inline-four
- Build type
- Street Performance Long Block
- Build ID
- KBM-K24-0001
- Completion date
- July 18, 2026
- Builder
- Kingdom Built Motors
- Build status
- Verified Build
- Intended use
- Premium street performance and properly calibrated mild-boost applications
02 / Bill of materials
Component specification
Major internal components identified by manufacturer, part number and build-specific notes.
01Connecting rodsManley · H-Beam connecting rodsDetails
ManufacturerManley
Part nameH-Beam connecting rods
Part number14018-4
Specification4340 forged steel, performance fasteners
Builder notes
Big-end sizing and installation verified.
02Main bearingsKing Racing · XP tri-metal main bearing setDetails
ManufacturerKing Racing
Part nameXP tri-metal main bearing set
Part numberMB5560XP
SpecificationMeasured to KBM fixture range
Builder notes
Oil clearances recorded at every journal.
03PistonsWiseco · Forged 87.5 mm piston setDetails
ManufacturerWiseco
Part nameForged 87.5 mm piston set
Part numberK542M875
Specification10.5:1 nominal compression, -7 cc dish
Builder notes
Pins fitted and locks visually verified.
03 / Machining
Machine work
Every approved operation tied to a provider, result and date for complete traceability.
✓
Pressure test and valve job
Capital Cylinder HeadHot pressure and vacuum tests passed
Seat contact centered and recorded.
✓
Cylinder honing
Precision Engine Machine87.500–87.508 mm; plateau finish
Torque plate installed.
04 / Precision record
Precision measurements
Only the designated accepted reading for each public point is shown; every value is checked against the specification captured with that reading.
9of 9
accepted points passed
accepted points passed
Main bearing clearance
5 accepted points
| Location | Accepted reading | Captured specification | Result |
|---|---|---|---|
| Main 1 | 0.0021 in | 0.0017-0.0023 in | PASS |
| Main 2 | 0.002 in | 0.0017-0.0023 in | PASS |
| Main 3 | 0.002 in | 0.0017-0.0023 in | PASS |
| Main 4 | 0.0019 in | 0.0017-0.0023 in | PASS |
| Main 5 | 0.0021 in | 0.0017-0.0023 in | PASS |
Rod bearing clearance
4 accepted points
| Location | Accepted reading | Captured specification | Result |
|---|---|---|---|
| Cylinder 1 | 0.002 in | 0.0018-0.0023 in | PASS |
| Cylinder 2 | 0.0021 in | 0.0018-0.0023 in | PASS |
| Cylinder 3 | 0.002 in | 0.0018-0.0023 in | PASS |
| Cylinder 4 | 0.0021 in | 0.0018-0.0023 in | PASS |
Development fixture values are illustrative KBM-controlled sample data and are not represented as official manufacturer specifications.
05 / Quality gate
Assembly verification
Required assembly controls signed off before the engine advanced to testing.
Block and oil passages cleanedVerified · KBM Lead Builder
Main fasteners torquedVerified · KBM Lead Builder
Rod fasteners torquedVerified · KBM Lead Builder
Cam timing verifiedVerified · KBM Lead Builder
Final engine rotation and visual inspectionVerified · KBM Lead Builder
06 / Validation
Testing & final inspection
Final test results captured before this engine was released as a Verified KBM Build.
PASS
Compression test218 / 220 / 219 / 221 psiPASS
Oil pressure24 psi hot idle / 76 psi at 4,000 rpmPASS
Final inspectionApproved by lead builder07 / Visual record
Build gallery
Photo documentation follows this engine from incoming core through final assembly.
Development sample image: incoming K24 core before teardown.
Development sample image: dimensional inspection workflow.

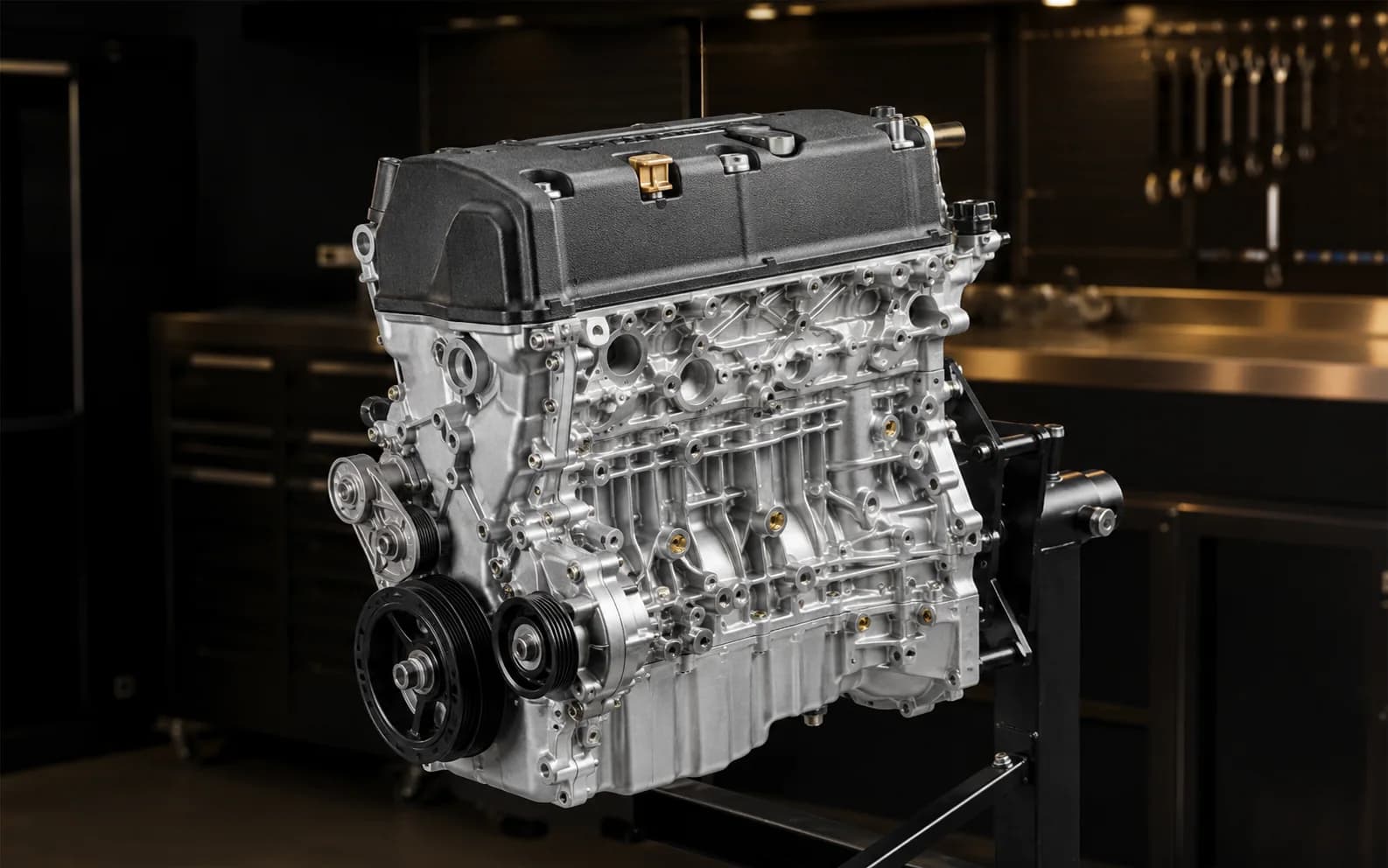

Development sample image: long block prepared for verification testing.
Development sample image for the KBM Passport vertical workflow.
08 / Builder record
Builder notes
Customer-facing context recorded by the builder at the time of completion.
“Development demonstration record: sample KBM-controlled build data, not a claim about measurements from a customer or production engine. This K24 was assembled as a durable, responsive street long block with documented clearances, ring gaps and valvetrain controls.”
KB
Kingdom Built MotorsVerified builder record · 2026-07-18
